Aqua Brush Rotor (Floated and Fixed Type)

เครื่องเติมอากาศผิวน้ำ ชนิดแนวนอน

ThaiEnglish

หลักการทำงาน

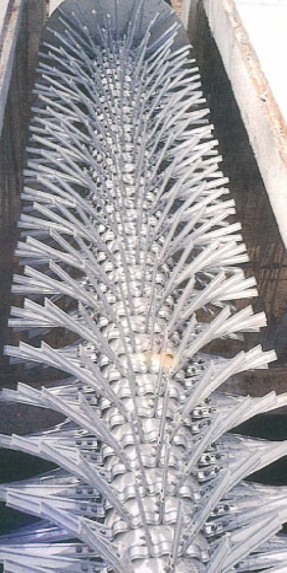

AQUA BRUSH ROTOR ประกอบด้วยชุดใบพัดเติมอากาศจำนวนมากที่ยึดติดและเรียงตัวกันตามเพลาแนวนอนของเครื่องเติมอากาศ ซึ่งรองรับด้วยตลับลูกปืนแบบ Self Alignment ซึ่งสามารถช่วยปรับแกนให้เกิดความสมดุลย์ด้วยตัวเอง ใบของเครื่องเติมอากาศถูกยึดติดอยู่โดยรอบเพลาด้านนอกของเครื่องเติมอากาศด้วยโบลต์และน๊อต ลักษณะของใบพัดเติมอากาศนี้เป็นชนิดที่ไม่อุดตันในระหว่างการเดินเครื่องและสามารถสลัดขยะต่าง ๆ ที่จะมาติดที่ใบพัดให้สามารถหลุดออกไปได้ด้วยแรงเหวี่ยงของเครื่องเติมอากาศ ประสิทธิภาพการแลกเปลี่ยนออกซิเจนของเครื่องเติมอากาศมีความสัมพันธ์กับความลึกจมน้ำของใบพัดเติมอากาศ นอกจากนี้ยังมีชุดแผ่นกั้นบังคับความเร็วของกระแสน้ำให้เกิดการผสมและควบคุมให้กระแสน้ำให้พัดพาไปในแนวลึกของบ่อหรือถัง

ลักษณะการใช้งาน
1.บ่อบำบัดน้ำเสียเทศบาล
2.ระบบบำบัดน้ำเสียโรงงานอุตสหกรรม
3.เพิมการกวนผสมในระบบบำบัดน้ำเสียชุมชน

จุดเด่นผลิตภัณฑ์
1. มีอัตราการแลกเปลี่ยนออกซิเจนระหว่างน้ำกับอากาศสูง
2.ทำให้เกิดการปั่นป่วนของน้ำเสียในถังเติมอากาศเพื่อไม่ให้เกิดการจมตัวของตะกอนแบคทีเรีย
3.ทำให้เกิดการผสมของสมบูรณ์ของตะกอนแบคทีเรียในถังเติมอากาศ

How does it work
The AQuA BRUSH ROTOR consists of a series of blades connected to an horizontal torque shaft supported by a sef oligning double row cylindrica roller bearing unit. The aerotion blades are connected with blots around the torque shaft and are comple-ely open at the outer dianeter. This design ensures clog-free operation since all debris is thrown away from the aeration blades by centrifugal fcrce. The oxygen copacity and the power consumption of the AQUA BRUSH ROTOR are related to the rotar blade submergence. It is also neccessary to provide a velocity baffle down-stream of each rotor to control surface valocity and to distribute it over the liguid depth cross-section.

Possibilities of use
1.Transfer oxygen efficiantly from the air into the mixed liquor
2.Induce sufficient turbulence and flow velocity in the aeration tank to prevent settlement of the MLSS.
3.Ensure complete mixing of the MLSS with the inflowing sewage.

Advantage
1.Municipal Sewage treatment lagoon.
2.Factory wastewater treatment lagoon.
3.Ensure complete mixing of the MLSS with the inflowing sewage.

รายละเอียดเพิ่มเติม
